ODM OEM Supplies Intel J6412 Industrial Host 10W Low Power 2 COM Rugged Computers
Fodenn manufacturer supplies OEM ODM industrial fanless computer Service of Intel Celeron J6412 Low Power Consumption 3.5'' ITX motherboard for Gaming machines, Lottery terminals, IoT, Digital signage, Pos/kiosk, Quick service restaurants etc.
Platform :
EmbeddedSize Type :
179*142*43.6mm Fanless Mini PCsCPU :
Intel Elkhart Lake Celeron J6412 CPURAM (Memory) :
1*DDR4 SO-DIMM；Max to 3200 MT/sLAN :
LAN Ethernet 10M/100M/1000M self-adaptionCOM :
2x COM 232/485（Quickly switchable）USB :
4x USB3.0, 2x USB2.0Display :
HDMI+EDP/Lvds Synchronous/Asynchronous Triple DisplayItem No :
IPC-AC600Brand :
Fodenn1. Integrated Processor Performance: Equipped with the power-efficient Intel Elkhart Lake Celeron J6412 processor, striking a balance between performance and energy consumption, ideal for embedded and edge computing applications.
2. Versatile Memory Support: Supports DDR4 memory at 2666/2933/3200MHz, with a single SO-DIMM slot expandable up to 32GB, catering to diverse memory requirements.
3. Flexible Display Options: Offers a range of display output choices including VGA, HDMI, LVDS, and eDP, supporting synchronous or asynchronous triple display setups, perfect for multi-display scenarios.
4. Abundant Expansion Interfaces: Featuring M.2 slots, B key for 5G communication, E key for WiFi expansion, and multiple COM ports, USB interfaces, accommodating various external devices and communication needs.
5. Industrial Features: Encompasses 8-bit digital IO, 2 CAN buses, SIM card slot, tailored for industrial automation and IoT applications, enabling highly customized control and monitoring.
6. Stable Operating Environment: Operates reliably in a temperature range of 0°C to 60°C, maintaining high performance even under demanding conditions.
7. Multi-OS Compatibility: Offers broad compatibility, supporting Windows 10/11, Linux, UNIX, and more, making it suitable for various application software platforms.
8. Compact Form Factor Design: Compact 3.5-inch size (146mm*102mm), fitting seamlessly into space-constrained industrial environments.
9. Industrial-Grade Network Connectivity: Equipped with two RJ45 Gigabit LAN interfaces, ensuring high-speed and stable network connections, essential for data transmission and remote control.
10. Multi-Domain Adaptability: Suited for embedded computing, industrial automation, IoT, communication devices, and beyond, delivering high flexibility and customization options to cater to diverse application needs.for various industrial and embedded scenarios.
| IPC-AC600 Mini ITX Fanless Mini PCs | |||

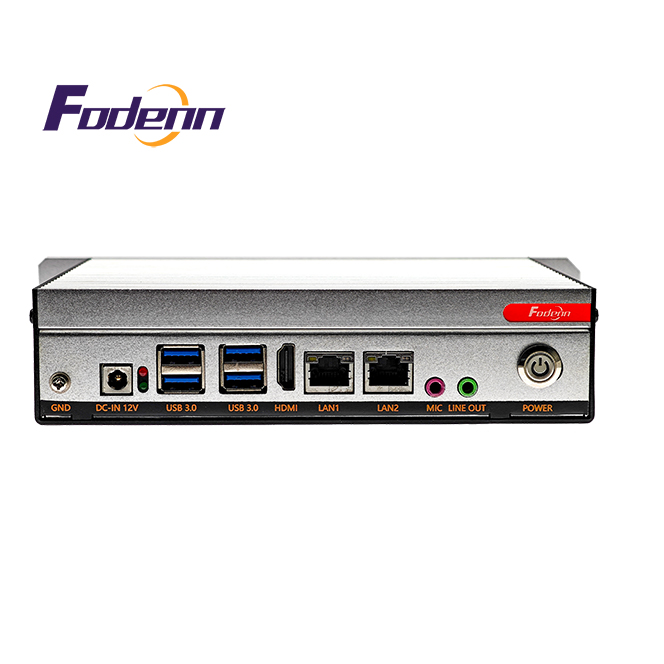

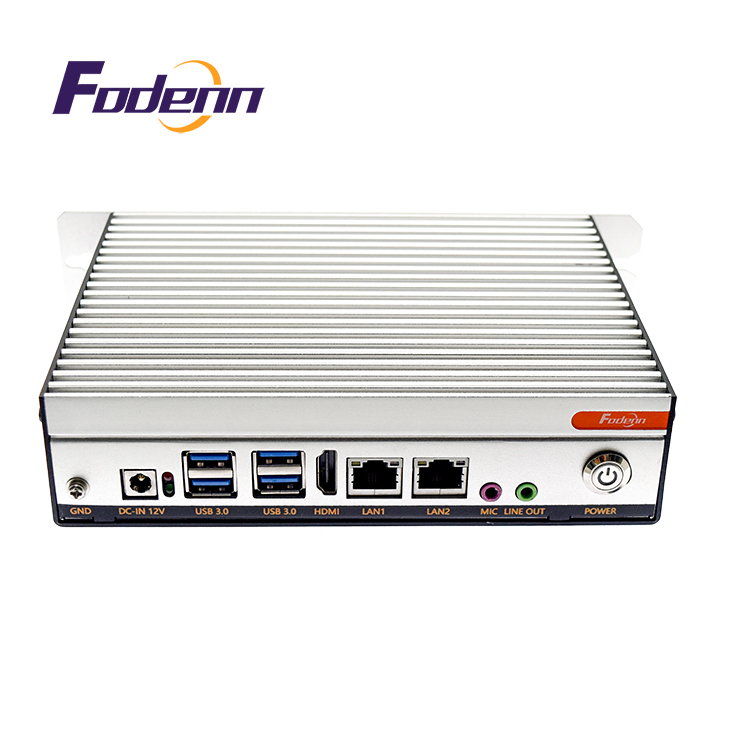

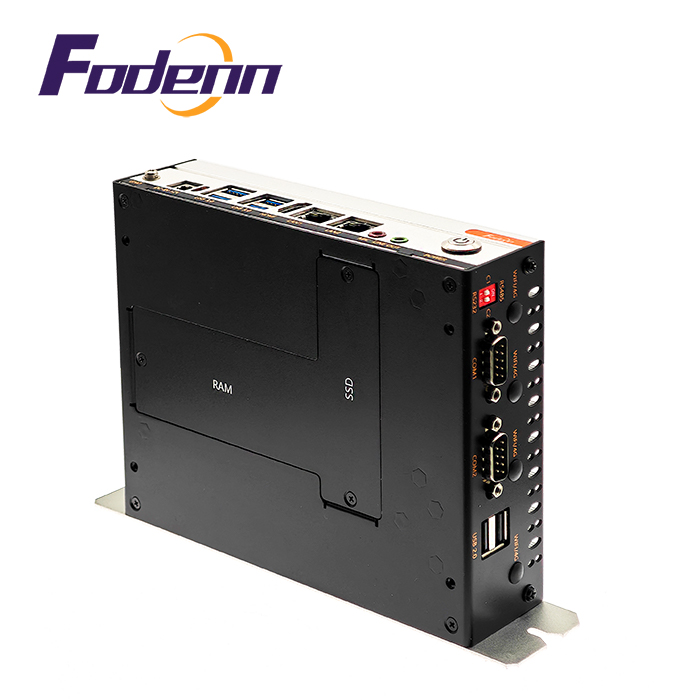

| Product appearance | |||
| Type | Detail | Standard configuration of the whole machine | Optional configuration |
| Product Form | Product Form | Industrial control host | |
| Feature | Fanless industrial control host | ||
| Appearance size | 179*142*43.6mm | ||
| Shell material | Aluminium alloy | ||
| Weight | 2KG | ||
| System hardware configuration | |||
| Type | Detail | Standard configuration of the whole machine | Optional configuration |
| CPU | Type | Intel Elkhart Lake Celeron J6412 CPU | Optional |
| Speed | 2.0GHz | ||
| Maximum speed after turbo frequency | 2.6 GHz | ||
| Power consumption | 10W | ||
| Memory | Type | 1*DDR4 SO-DIMM；Max to 3200 MT/s | |
| Storage | 4GB,8GB,16GB,32GB(Support quick disassembly) | Optional | |
| Storage | SSD | M.2 2280 NVME/ NGFF，Max 2TB(Support quick disassembly) | Optional |
| RTC | BIOS Support | Real time clock, timed startup | |
| Automatic startup | BIOS support | Support automatic power on function after power on | |
| Network wake-up | BIOS support | Support network wake-up | |
| TPM | CPU integrated TPM | / | |
| Single screen output | Video output | 1*HDMI | |
| LED | Status indication | Green is the startup light； Red light is the hard drive light |
|
| Network connection | |||
| Type | Detail | Description | Optional configuration |
| WIFI | Type | M.2 wifi 5/wifi 6/4G | Optional |
| Protocol | PCIE | ||
| Bluetooth | Type | Bluetooth 4.2/5.2 | |
| Protocol | USB2.0 | ||
| Ethernet | LAN1 | 10M/100M/1000M self-adaption | |
| Ports | |||
| Type | Detail | Description | Optional configuration |
| USB | USB3.0 | USB3.0x4 | |
| USB2.0 | USB2.0x2 | ||
| Video output | Video output | HDMI+EDP/Lvds Synchronous/Asynchronous Triple Display | |
| RJ45 | Gigabit Ethernet | RJ45 x2 | |
| POWER Switch | Power button | x1 | |
| DC IN | Power input | 5.5/2.5mm DC Jack x1 | |
| Audio-in/out | Audio input/output | 3.5mm LINE OUTx1 MIC INx1 | |

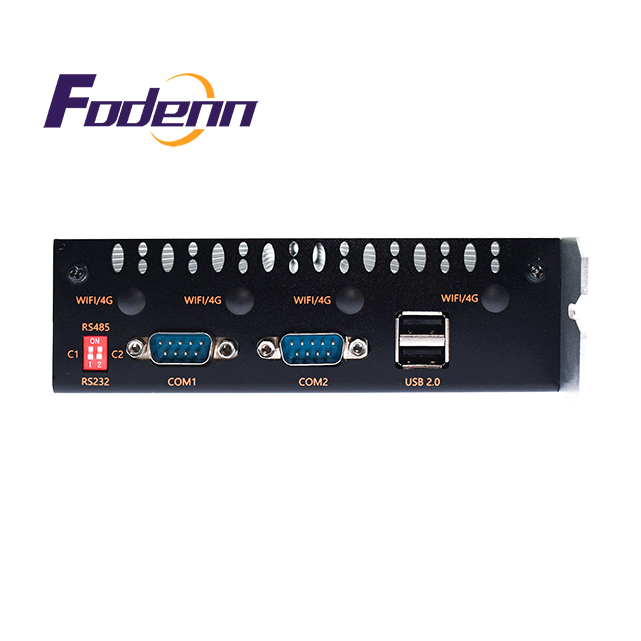

| Serial port | 232/485 | COMx2 232/485（Quickly switchable） | |
| Antenna1 | Pole antenna | WiFi /4G | |
| Antenna2 | Pole antenna | WiFi /4G | |
| Antenna3 | Pole antenna | WiFi /4G | |
| Antenna4 | Pole antenna | WiFi /4G | |
| Software configuration | |||
| Type | Detail | Description | Optional configuration |
| Operating system | Operating system version | Win11 Home/Win11 pro/Win11 IOT/ Ubuntu | |
| Applicable environment | |||
| Type | Detail | Description | Optional configuration |
| Environment | working temperature | 0~45℃ | |
| Storage temperature | -20~60℃ | ||
| humidity | 90% @ 40 °C (No condensation) | ||
| Accessories | |||
| Type | Detail | Description | Optional configuration |
| Power adapter | Wall mounted/desktop | Input 100~240V 50/60Hz, output 12V/3A | |

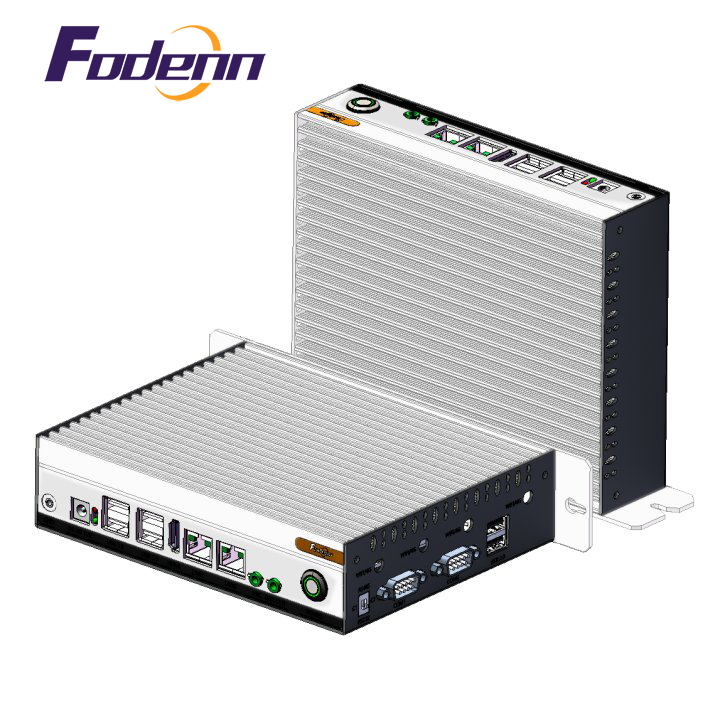

| Install | Wall mounted/desktop/embedded | ||
The industrial grade embedded rugged computer IPC-AC600 is equipped with a Power Adapter, Cable, Installation bracket and other components. It can be used in a wide range of fields, including industrial automation production equipment, industrial robots, Gaming machines(Lottery terminals, VLTs, and AWPs)， Digital Signage(digital signage， pos/kiosk， quick service restaurant)， Medical Imaging(Portable Medical Equipment, Clinical Workstation, MRI, X-ray, CT)， Industrial IoT Controls & Automation(Industrial PC, HMI panels, Surveillance, IoT Gateway)， Thin Client(Financial/Education, Converged Devices)， Communications Infrastructure (uCPE, SD-WAN, Routers, Switches, UTM, Security Appliances), minibox, interactive equipment, all-in-one machines, self-service machines, cloud terminals, OPS terminals, industrial control machines, edge computing, network gateways, machine vision, AI computers, etc.
