Intel Core 10-11th PCIE 16X Embedded Motherboard Q470 LGA1200 ATX Motherboards

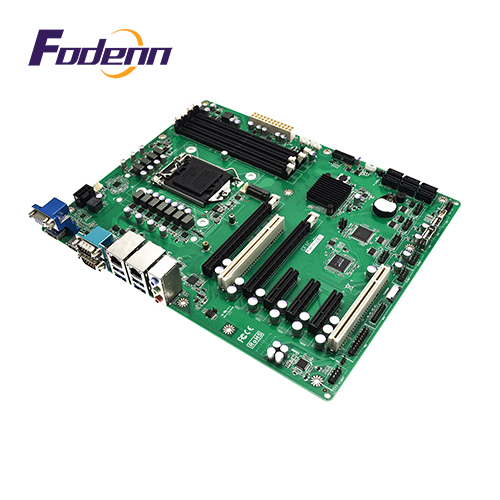

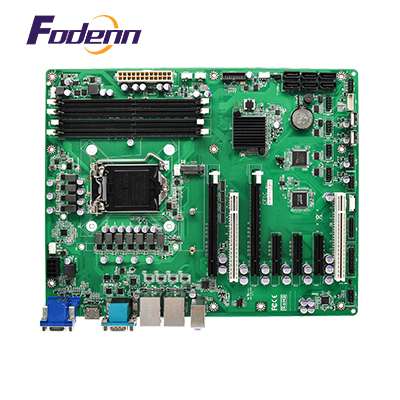

IPC-Q477: In the realm of industrial computing, the Fodenn pcie 16X IPC-Q477 Industrial ATX embedded motherboard sets a new standard for performance, reliability, and versatility，powered by Intel Core 10-11th Gen Core i7/i5/i3/Celeron/Pentium Socket LGA1200. Designed to meet the rigorous demands of industrial applications, the IPC-Q477 is a powerhouse that delivers exceptional processing capabilities, expansive memory support, and a wide array of I/O options, support OEM ODM develop customized solutions.
Platform :
DesktopSize Type :
305*245mm ATX motherboardsCPU :
Intel Core 10-11th Gen Core i7/i5/i3/Celeron/Pentium LGA1200 socketRAM (Memory) :
DDR4-2400/2666/2933,4*U-DIMM up to 128GBLAN :
2*RJ45，Intel219LM/i225V Gigbite LANCOM :
2*RS232/RS422/RS485；4*RS232 HeaderUSB :
4*USB3.1(Gen1)；2*USB3.0 Header,4*USB2.0Header, 2*USB(erect)Display :
VGA+HDMI+DP synchronous/asynchronous Triple displaysItem No :
IPC-Q477Brand :
FodennProcessor and Chipset:The IPC-Q477 ATX motherboards are equipped with the powerful Intel Core 10-11th Gen Core i7/i5/i3/Celeron/Pentium LGA1200 processor, supported by the Q470E/Q470 chipset with a TPD of 6W. This combination ensures high-performance processing with energy efficiency, making it ideal for applications that require sustained computational power.
Memory:With 4 U-DIMM slots, the IPC-Q477 industrial motherboards support DDR4 2400/2666/2933MHz memory, allowing for configurations up to 128GB. This extensive memory capacity is perfect for data-intensive tasks and ensures smooth multitasking capabilities.
Graphics and Operating Systems:The onboard Intel HD Graphics integrated into the IPC-Q477 provides robust visual processing capabilities. The motherboard is compatible with Windows 10/11, LINUX, and UNIX operating systems, offering flexibility in software choices. The BIOS system, based on AMI UEFI, ensures a secure and user-friendly interface for system configuration and management.

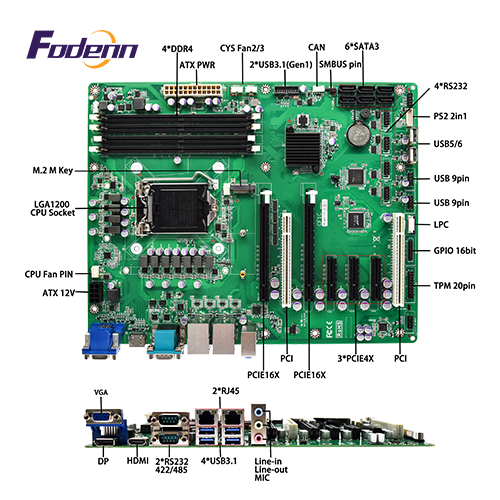

I/O Interfaces:The IPC-Q477 Single Board Computers boast a comprehensive set of I/O interfaces, including 2 Gigabit LAN ports (Intel219LM/i225V Gigabit LAN), and a ttriples display interfaces with VGA, HDMI, and DP for synchronous and asynchronous triple display capabilities. Audio is well catered for with 5.1 Channel support, including 1 LINE-OUT, 1 MIC-IN, and 1 LINE-IN. USB connectivity is ample with 4 USB3.1 (Gen1) ports.
Expansion Slots and Connectivity:The ATX motherboard features a robust set of expansion slots, including 1 PCIe X16, 1 PCIe X8, 3 PCIe X4, and 2 PCI slots, providing ample room for additional hardware. It also includes 4 RS232 Header COM interfaces, 2 USB3.0 Headers, 4 USB2.0 Headers, and 2 USB (erect). Storage is well supported with 6 SATA3.0 ports and 1 M.2 NVME 2260/2280 slot. Additional features include a 20Pin TPM Header and a 4pin CAN port.
Power and Environmental Resistance:The IPC-Q477 supports a 24+8Pin ATX power supply with input voltages of +12V, +5V, +3.3V, and -12V. It is designed to operate in a wide temperature range from -20℃ to 60℃, and can be stored in even more extreme conditions from -40℃ to +85℃, making it suitable for harsh environments.
| IPC-Q477 Industrial ATX Motherboard | ||
| System | CPU | Intel Core 10-11th Gen Core i7/i5/i3/Celeron/Pentium LGA1200 |
| Chipset | Q470E/Q470 TPD 6W | |
| RAM | DDR4-2400/2666/2933,4*U-DIMM up to 128GB | |
| BIOS | AMI UEFI | |
| Graphics | Intel® HD Graphics | |
| OS Support | WIN10/11, LINUX,UNIX | |
| Watchdog | 256 levels, programmable 0-255 sec/min | |
| Rear I/O | LAN | 2*RJ45，Intel219LM/i225V Gigbite LAN |
| Display | VGA+HDMI+DP synchronous/asynchronous TRIPLE display | |
| Audio | 5.1 Channel，1*LINE-OUT，1*MIC-IN，1*LINE-IN | |
| COM | 2*RS232/RS422/RS485 | |
| USB | 4*USB3.1(Gen1) | |
| Internal I/O | Expansion port | 1*PCIE X16 ,1*PCIE X8, 3*PCIE X4, 2*PCI |
| COM | 4*RS232 Header | |
| USB | 2*USB3.0 Header,4*USB2.0Header, 2*USB(erect) | |
| Storage | 6*SATA3.0, 1*M.2 NVME 2260/2280 | |
| GPIO | 16 bits digital I/O | |
| TPM | 20Pin TPM Header | |
| CAN | 4pin CAN port | |
| LPC | 1*LPC socket | |
| PS/2 | PS/2, 2 in 1 | |
| Power | Power Input | 24+8Pin ATX power supply |
| Input Voltage | +12V +5V +3.3V -12V | |
| Structure | Dimension | 305*245MM |
| Environment | Operating Environment | -20℃~60℃，0~95%RH, non-condensing |
| Storage Environment | -40℃~85℃，0~95%RH, non-condensing | |
| Certificate | Safety Certification | CE |
| Parts List | I/O bezel，DB9 COM cable，USB cable | |
The IPC-Q477's standard ISA ATX form factor, measuring 305*245mm, makes it widely applicable across various industries. It is ideal for use in all-in-ones, cloud computing platforms, industrial control systems, system integration, intelligent traffic control, surveillance, vehicular computers, advertising machines, multimedia publishing machines, industrial automation equipment, self-service coffee machines, self-service beverage machines, rail transportation equipment, financial devices, medical and social security devices, mini PCs, self-service kiosks, industrial control machines, edge computing, network gateways, machine vision, and AI computers.
