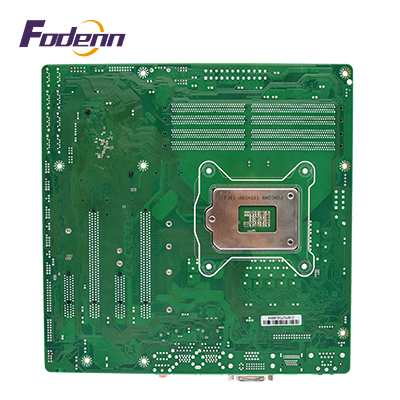

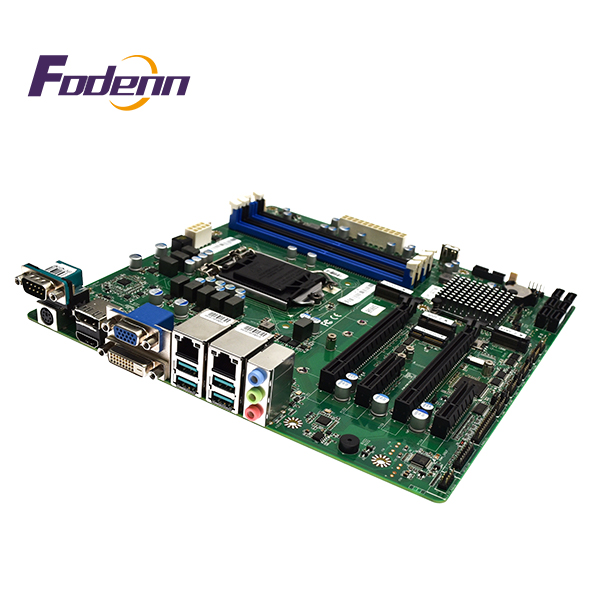

IPC-Q37MF: In the realm of industrial computing, the Micro ATX form factor motherboards IPC-Q37MF offers a balance of power and space efficiency that is ideal for a variety of applications. Fodenn's IPC-Q37MF is a robust Micro ATX industrial motherboard that delivers the processing capabilities of the Intel® 9th/8th Generation Coffee Lake series processors in a compact and reliable package. Designed for durability and high-performance, the IPC-Q37MF is the epitome of industrial strength computing.
Platform :
EmbeddedSize Type :
244 * 244mm MATXCPU :
Intel®LGA1151 Socket Supports 8/9th Gen CoreTMRAM (Memory) :
DDR4 2666/2400/2133 MHz DRAM, up to 128GBLAN :
Intel®I219-V +i210AT Gigabit LAN,2*RJ45COM :
5(COM2:RS232/422/485,COM3/4/5/6:RS232,COM2/3/4/5 Support 5/12V TTL)USB :
4x USB 3.1 (Gen.2) port; 2x USB3.0 +4x USB 2.0 + 1x USB2.0(Erect)Display :
VGA+HDMI+LVDS+DVI-DItem No :
IPC-Q37MFBrand :
Fodenn1. Powerful Processing: The IPC-Q37MF is equipped with the Intel® LGA 1151 Socket, supporting 9th/8th Generation Coffee Lake series processors with a TDP of 95W. This ensures that the motherboard can handle the most demanding tasks with ease. The 128M Bit AMI Flash ROM BIOS provides a stable and efficient platform for system management.
2. Ample Memory Support: With four DDR4 U-DIMM slots, the IPC-Q37MF can support up to 128GB of RAM, making it ideal for memory-intensive applications. This extensive memory capacity ensures smooth multitasking and efficient data processing.
3. Integrated Graphics and OS Support: Featuring Intel HD Graphics, the motherboard offers robust visualization capabilities suitable for various industrial displays. It supports a range of operating systems including Windows 7/8/10/11, Linux, and Unix, providing flexibility for different software requirements.
4. Comprehensive I/O Connectivity: The motherboard comes with 2 Gigabit LAN ports for high-speed networking, and a variety of display interfaces including VGA, HDMI, LVDs, and DVI-D. The Realtek ALC662VD audio solution includes LINE-IN, LINE-OUT, and MIC-IN. It also offers 6 USB 3.0 and 5 USB 2.0 ports, along with a PS/2 2in1 connector for versatile peripheral connectivity.
5. Extended Internal I/O and Expansion: The IPC-Q37MF includes 5 COM port headers (with support for RS232/422/485) and a total of 2 PCI-Express x16 slots for additional expansion capabilities. It also features an M.2 B-KEY slot and an M.2 E-KEY slot for modern storage and connectivity options.
6. Advanced Storage Solutions: The motherboard supports 6 SATAIII 6Gb/s ports with RAID 0/1/5/10 support, providing flexible and reliable storage options for industrial applications.
7. Industrial-Grade Resilience: With support for input voltages of DC ±12V, +5V, +3.3V, -12V, the IPC-Q37MF is designed to operate in temperatures ranging from 0℃ to 60℃. This makes it suitable for use in harsh industrial environments where temperature fluctuations and electrical noise are common.
| IPC-Q37MF Intel Core 8th 9th MATX Industrial Motherboard | ||
| System | CPU | Intel®LGA1151 Socket Supports 8/9th Gen CoreTM |
| Chipset | Q370 | |
| RAM | DDR4 2666/2400/2133 MHz DRAM, up to 128GB | |
| BIOS | AMI UEFI | |
| Graphics | Intel® HD Graphics | |
| OS Support | WIN 7 / 8 / 10 / 11,LINUX,UNIX | |
| Watchdog | 256 levels, programmable 0-255 sec/min | |
| Rear I/O | LAN | Intel®I219-V +i210AT Gigabit LAN,2*RJ45 |
| Display | VGA+HDMI+LVDS+DVI-D | |
| Audio | Realtek ALC662VD,Line-Out, Line-in, MIC. | |
| COM | 5(COM2:RS232/422/485,COM3/4/5/6:RS232,COM2/3/4/5 Support 5/12V TTL) | |
| USB | 4* USB 3.1 (Gen.2) port | |
| Internal I/O | Expansion port | 2*PCI-E x16 + 2*PCI-E x4 slots |
| COM | 5*RS232/RS422/RS485 | |
| USB | 2* USB3.0 +4* USB 2.0 + 1*USB2.0(Erect) | |
| Storage | 6 * SATAIII (6.0Gb/s , Support RAID 0/1/5/10) | |
| GPIO | 1* 16-bit GPIO header | |
| TPM | Depends on CPU model, support TPM | |
| PS/2 | 1*PS/2 | |
| Port | 1*SIM Card holder | |
| Function | 2 * M.2 Key M slot(1*2242/2280/22110 (NVMe )，1*2242(SATA，Co-lay SATA4); 1*M.2 B slot(3042/3052,Support 3G/4G/5G Module); 1*M.2 E slot(2230,Support CNVi) |
|
| Parallel port | 1* Parallel port header | |
| Power | Power Input | 24+8Pin ATX power supply |
| Input Voltage | +12V +5V +3.3V -12V | |
| Structure | Dimension | 244 * 244mm |
| Environment | Operating Environment | 0℃~60℃，0~95%RH, non-condensing |
| Storage Environment | -20°C ~ 85°C | |
| Certificate | Safety Certification | CE |
| Parts List | I/O bezel，DB9 COM cable，USB cable | |
Versatile Application Range: The standard industrial Micro ATX motherboard IPC-Q37 measures 240*240 millimeters and comes with an I/O bezel, DB9 COM cables, and USB cables. Its wide range of applications includes industrial automation, rail transit systems, financial devices, medical and social security equipment, mini PCs, interactive kiosks, all-in-one machines, self-service terminals, cloud endpoints, OPS terminals, industrial control machines, edge computing, network gateways, machine vision, and AI computers.
